4K 60Hz Multi-Image Processor
The feature-rich MS-741 delivers superior mage quality at up to 4K
60Hz resolution with customizable display windows. The unit offers
internal switching of up to six input signals, four of which can be
displayed simultaneously.
Connect the MS-741 to any monitor or projector from XGA up to
4K/UHD resolution, and you’re ready for the next generation in

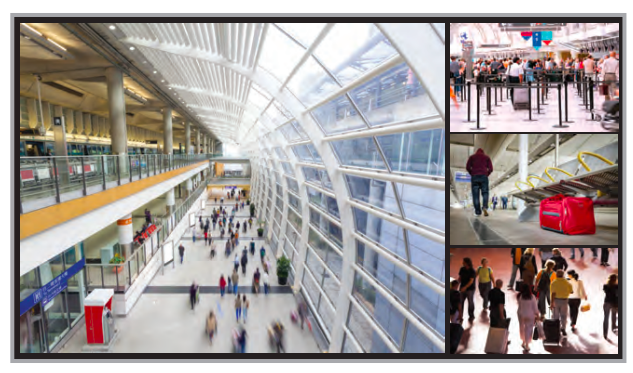

multiviewer performance. You can mix and match input resolutions,
scale any video input up to 4K UHD and route any input to any
window. Both HD and 4K UHD inputs can be displayed without
downscaling. The MS-741 has built-in analog and digital audio
switching you can select from any source.
The Bring Your Own Device (BYOD) Auto Layout feature automatically
detects the number of connected inputs and configures the
applicable display layout.
Control options include the front panel, a built-in web interface
and third-party control via Telnet and RS-232. The front panel is
simplicity itself, enabling audio, video input and layout
selection.Simply select a customizable layout, choose inputs, and
route them to the desired display windows.
The versatile MS-741 allows users to fully capitalize on the
benefits of 4K UHD resolution displays. It is an ideal solution for
boardrooms, entertainment and sports venues, lobbies, control
rooms, and command centers.
Product Specification:
| Video |
| Input interface | 4× HDMI IN, 2 x DP IN, 1 x VGA IN |
| Input specification | HDMI:HDMI 1.4a |
| DVI: 165MHz (UXGA@60Hz) |
| DisplayPort: DP1.2a |
| MHL: supports MHL2.0, 1080p |
| HDCP: HDMI 1.4, DP 1.3 |
| RGB/YPbPr: 205MHz (up to UXGA@75Hz) |
| Support input resolution | Up to 3840 x 2160@30Hz (4K x 2K@30Hz) |
| Input level | 0.5-1.0 V peak to peak |
| Output interface | 1 x HDMI OUT |
| Output specification | HDMI 1.4 |
| Support output resolution | Up to 3840 x 2160@30Hz (4K x 2K@30Hz) |
| Output impedance | 100 Ω |
| DDC signal | 1.2 V Peak to peak |
| Audio frequency |
| Input interface | 7 x 3.5mm stereo jack |
| Output interface | 4 x 3.5mm stereo jack |
| 1 x optical fiber terminal |
| Routine |
| Power Supply | 110~240V AC |
| Power waste | 15W |
| Control mode | RS232, LAN |
| Working temperature | 0°C to 35°C (32°F to 95°F) |
| 10% to 90%, non condensing |
| Storage temperature | -20°C to 70°C (-4°F to 140°F) |
| 10% to 90%, non condensing |
| Product size | 440mm x 272mm x 43.5mm |
| (L x W x H) |
| Product weight | 3.16kg |
Key Benefit:
• Up to 4K 60Hz input resolution • Up to 4K 60Hz display resolution
• Customizable display layouts
• Switched inputs: 4x HDMI and 2x DisplayPort
• BYOD Auto Layout • HDCP 2.2 & 1.4 support
• Built-in audio switching
• Borders & labels K
