Civil Aviation UHD 4K 30Hz 444 1U 19" Rack 7 In 1 Out 4 Windows Scaler Multiviewer

The Grastron MS741 is a hight end multiviewer provide excellent video audio performance with Output Connectors HDMI/DVI 1x HDMI 19-pin female connector, Digital audio 1x TOSLINK Optical female connector (stereo output), Analog audio 4x 3.5mm female connectors.

Product Specifications:

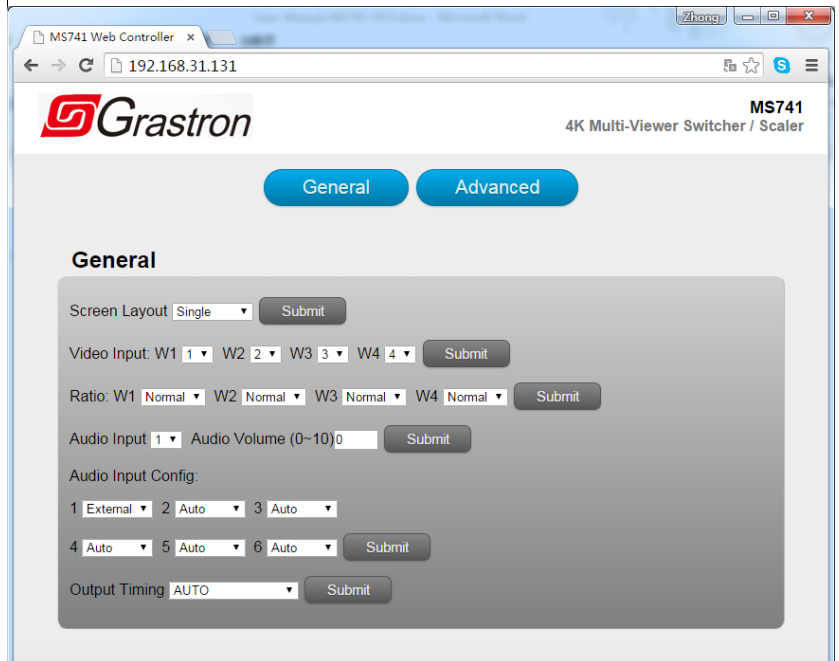

WEB Setting

MS741 can be controlled via Web browser, which contains home screen, general settings and advanced settings. After the cables are connected, the IP address is obtained and the IP address is input in the Web browser, the MS741 can be controlled. For more information about how to obtain the IP address, see the chapter IP Setting above.

For example, the obtained IP address is 192.168.3.5 and port number is 23.

Input http://192.168.3.5 in the address bar of the web browser.

General Settings

Contain the following options.

1. Screen Layout Selection

2. Video Input Selection

3. Ration

4. Audio Input Selection

5. Audio Volume Setting

6. Audio Input Config

7. Output Timing

Application:

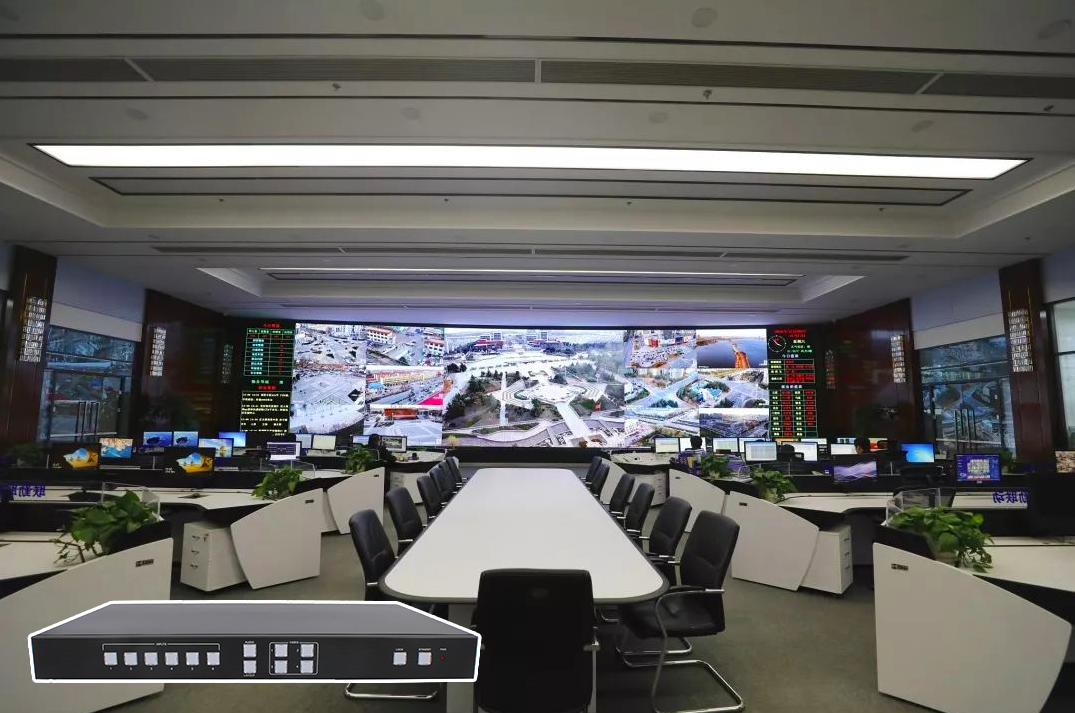

Grastron MS741 UHD 4K Presentation Scaler Switcher Multiviewer is ideally used for Civil Aviation System control room. Help operation manager flexibly view multiple video sources.

Grastron's wireless media series, dedicated to providing the simplest BYOD presentation, collaboration and video conferencing experience in working and learning spaces.Compared with traditional pro A/V connection in working and learning spaces, wireless presentation system not only eliminates the messy cables to keep the table clean, it also encourages collaboration between attendees and make the meeting/learning more productive, and due to the easy-to-use, easy-to-deploy, easy-to-management attributes, wireless presentation system has been widely used in enterprise, education schools in recent years, more and more brands are investing in this solution both from pro AV and IT industry.
