Government Military Control Room UHD 4K30Hz 444 Multiviewer Seamless Scaling Presentation Switcher

Grastron MS741 with excellent video and audio performance. Also, easy to use and control. Control is via a Web interface, RS232, Ethernet, Infrared remote or from the front panel buttons. Four of the buttons on front panel and the IR remote are assignable which means you can allocate specific preset configurations and easily recall them during presentations.

Product Specifications:

Audio Setting

Audio Input Select

When selecting the video input, the audio also has seven inputs. When the video input is selected as HDMI or DisplayPort, the audio can be input from HDMI or DP. If the HDMI or DP input has no audio, the audio input will be from the corresponding 3.5 mm earphone jack. For example, if the DVI signal is transmitted through HDMI1, the audio can be input from the 3.5mm earphone jack of the audio input 1 (above the HDMI1 port). VGA video corresponds to the 3.5mm earphone jack of the audio output 7.

Operations for audio switching:

Method 1:

(1). Press “Audio Selection Button” (ID#3 in front buttons), the corresponding button backlit indicator lights up, which means the audio output is selected. The Inputs indicator of the corresponding audio source turns solid on, the other indicators blink.

(2). Press “Inputs Button” (ID#2 in front buttons), the audio is switched to this channel. At the same time, other inputs indicator are off.

(3). In the status mentioned in Step (2), if no further operation is performed within 5 seconds, it exists from this status.

Method 2:

(1). Press “Inputs Button” (ID#2 in front buttons), the corresponding indicator lights up, which means the audio input is selected. The “Audio Selection Button” blinks to be ready for selecting.

(2). Press “Audio Selection Button” (ID#3 in front buttons), the input selected audio in step#1 is switched to program audio output channel. At the same time, Inputs indicator and audio indicator are off.

(3). In the status mentioned in Step (2), if no further operation is performed within 5 seconds, it exists from this status.

Notes:

(1). Press audio button, the Inputs indicator of the corresponding audio source turns solid on, the other indicators blink. Can confirm the current audio selected channel

(2). HDMI and DisplayPort have a 3.5mm earphone jack of stereo audio, if HDMI or DisplayPort input signal with audio format, voice output is the digital audio signal, if the signal without audio format, then automatically switch to 3.5 earsframe input analog stereo.

Audio Output Instructions

There are three methods of audio output:

(1).HDMI output

(2).Optical output

(3).Analog output, 8 channels for audio output

If the input audio format is 2 ch, 1 ch and 2 ch of the 8 channels output the audio. If 5.1 ch, channels from 1 to 6 output the audio.

OSD Setting Instructions

1) Boot logo

2) Each window displays input source, the resolution of the input signal, No HDMI Cable, No HDMI Signal and HDMI/DisplayPort/VGA.

A． When the single window is displayed:

B． When the double windows are displayed:

C． When the triple windows are displayed:

D． When the quadruple windows are displayed:

3) Audio Mute indicates:

4) Volume adjustment:

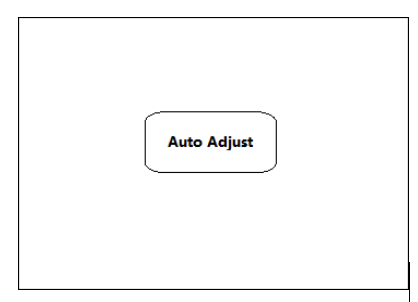

5) VGA Auto Menu:

6) IP address is displayed:

Application:

Grastron MS741 series 30Hz Quad Screen Multiviewer Presentation Switcher is not only used for the control room but also use for meeting space. Provide business users better collaboration experience.

Grastron's wireless media series, dedicated to providing the simplest BYOD presentation, collaboration and video conferencing experience in working and learning spaces.Compared with traditional pro A/V connection in working and learning spaces, wireless presentation system not only eliminates the messy cables to keep the table clean, it also encourages collaboration between attendees and make the meeting/learning more productive, and due to the easy-to-use, easy-to-deploy, easy-to-management attributes, wireless presentation system has been widely used in enterprise, education schools in recent years, more and more brands are investing in this solution both from pro AV and IT industry.
